03993, 4846 Tank Jack Saddle
Item ID: 03993
$195.62
Free Shipping
Product Description

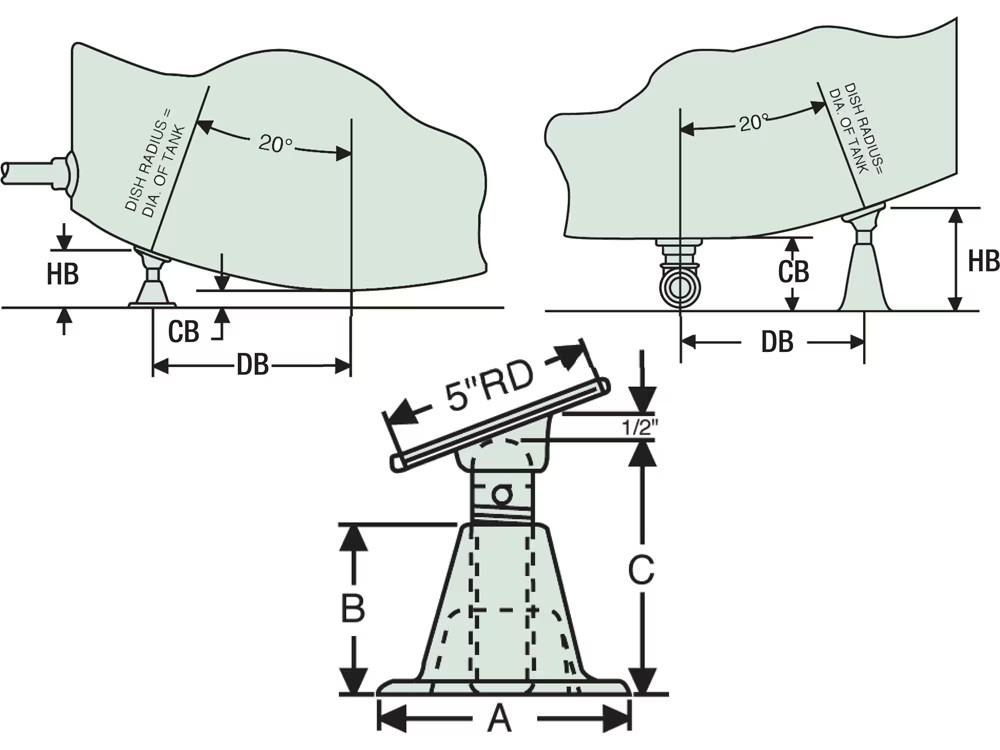

Use the installation data chart below, along with the Dimensions drawings, to determine the size and number of jacks your application will require.
Model Order Number Base Diameter "A" (in) Base Height "B" (in) Minimum Height "C" (in) Maximum Height "C" (in) Weight (lbs) 4406 03820 5.75 4 6 8 10 4410 03840 6 8 10 12 12 4414 03860 6.5 12 14 16 17 4418 03880 8 16 18 20 26 Saddle 4846 03993 ---- ---- ---- ---- 2.5Product Specifications
Compatible Products03820, 03840, 03860
Weight (lbs)2.5
Product TypeSaddle
Available - Backorder
About this Product
Use the installation data chart below, along with the Dimensions drawings, to determine the size and number of jacks your application will require.
Model Order Number Base Diameter "A" (in) Base Height "B" (in) Minimum Height "C" (in) Maximum Height "C" (in) Weight (lbs) 4406 03820 5.75 4 6 8 10 4410 03840 6 8 10 12 12 4414 03860 6.5 12 14 16 17 4418 03880 8 16 18 20 26 Saddle 4846 03993 ---- ---- ---- ---- 2.5No specifications available.
