A66, 6 Port, Hexagon Hydraulic Manifold
Item ID: A66
$242.40
Free ShippingEst. Ship date is Mon, Oct 12th 2026
Product Description
Enerpac A-Series hydraulic manifolds allow you to split the flow of hydraulic oil from a central block.
A64, A65, and A66 manifolds have a 3/8"-18 NPT female port and maximum operating pressure of 10,000 psi (700 bar).
A63, A60, and A61 manifolds have a SAE #4 female port and a maximum operating pressure of 5,000 psi (350 bar).
Product Specifications
Maximum Operating Pressure (bar)700
Maximum Operating Pressure (psi)10000
Weight (lbs)1.8
Available - In Stock
About this Product
Enerpac A-Series hydraulic manifolds allow you to split the flow of hydraulic oil from a central block.
A64, A65, and A66 manifolds have a 3/8"-18 NPT female port and maximum operating pressure of 10,000 psi (700 bar).
A63, A60, and A61 manifolds have a SAE #4 female port and a maximum operating pressure of 5,000 psi (350 bar).
Features
- Easy to connect
- Mounting holes on all models
Units:
Maximum Operating Pressure (bar)700
Maximum Operating Pressure (psi)10000
Weight (lbs)1.8
Product TypeHexagon Manifold
Dimension D1 (in)1.5
Dimension D1 (mm)38
Number of Ports6
Oil PortsG3/8"
Oil Ports (NPTF)3/8"

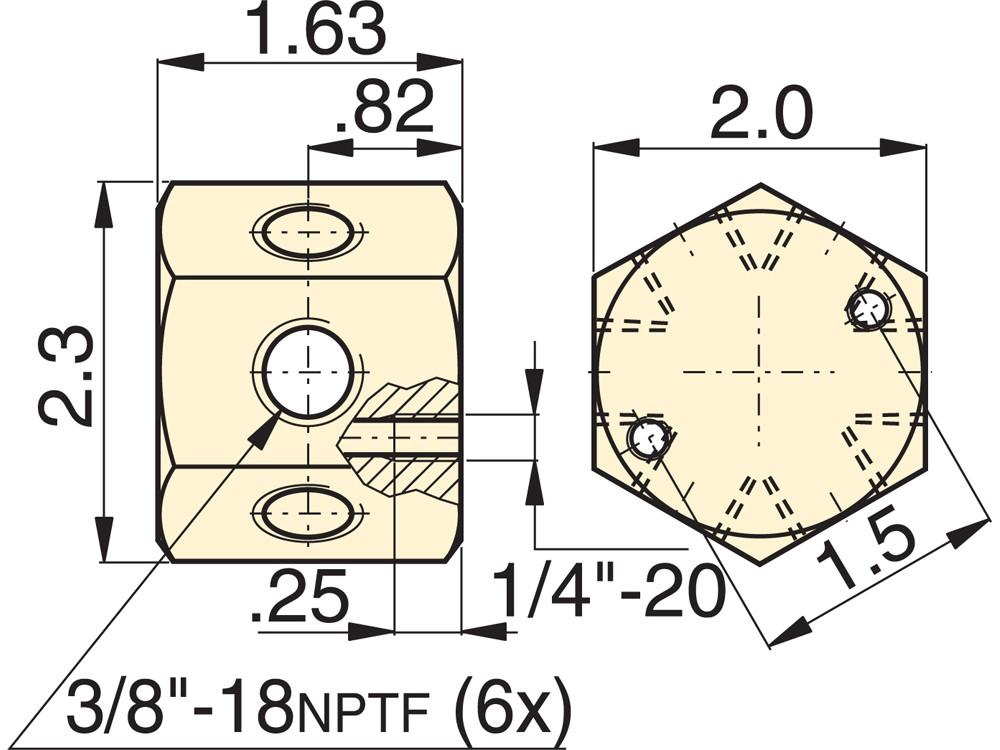

Units:
Dimension A2.3"
Dimension B1.63"
Dimension C2"
Dimension D0.25"
Dimension E.375 - 18 NPT"
Dimension FN/A
